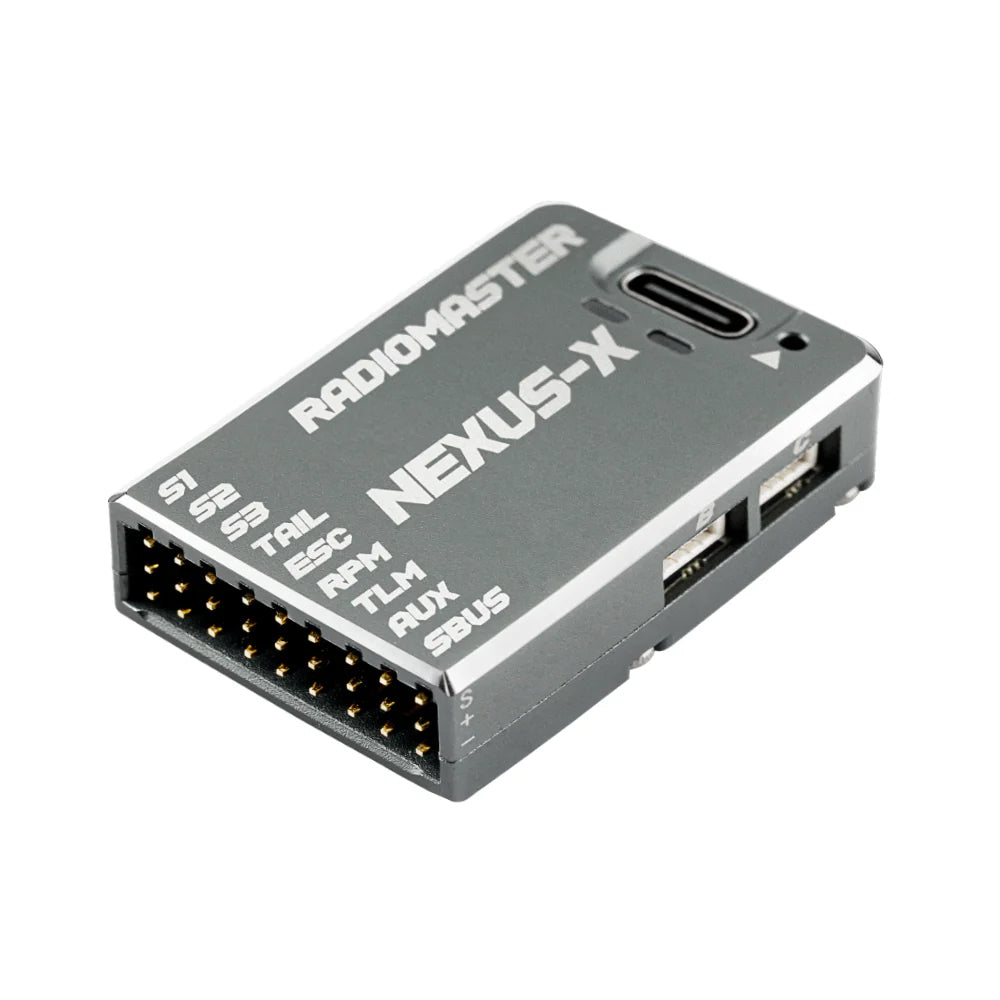

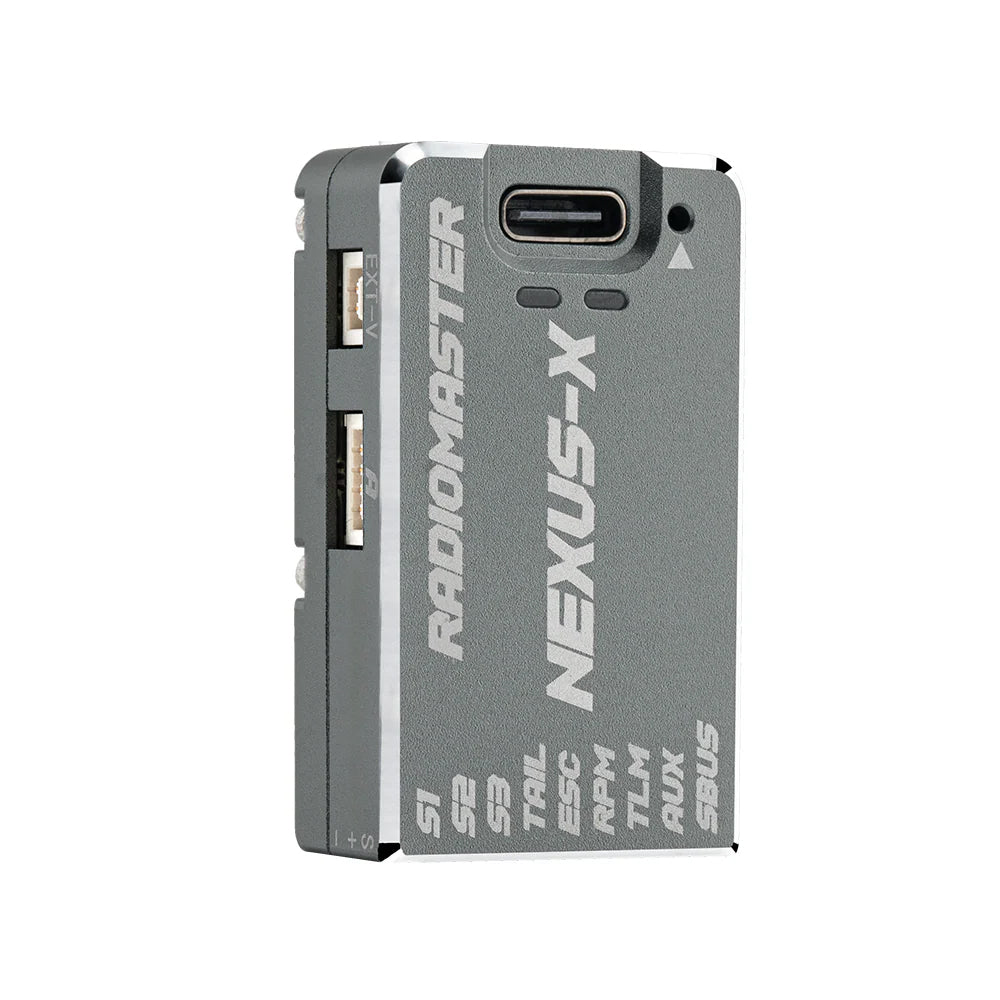

The NEXUS-X Control System is specifically designed for RF 2.2 and provides outstanding compatibility, performance, and ease of use.
Powered by the STM32F722 MCU and equipped with the highly accurate ICM42688P 6-axis MEMS motion tracker, the Nexus-X delivers precise control, seamless stabilization, and outstanding performance. Its integrated Black Box Onboard memory has been expanded to 256MB, enabling substantially longer data logging and the storage of detailed session records, facilitating easy tuning and performance optimization.
Designed for versatility and future-proofing, the Nexus-X features multi-function UART ports for seamless integration with various receivers and peripherals. It supports Plug’n’Play solder-free RP3-H ELRS receivers and traditional S.BUS, ensuring flexible connectivity.
Encased in a robust CNC-machined aluminum case, the Nexus-X stays cool under demanding conditions while protecting its electronics. Its lightweight, compact design fits effortlessly into any build.
The NEXUS-X Control System for enthusiasts who want a clean, reliable, high-performance experience.
Features
- Optimized for RF 2.2: Engineered for peak performance and compatibility.
- Precision Control: STM32F722 MCU and ICM42688P 6-axis motion sensor/accelerometer for superior dynamics.
- Data Logging: 256MB onboard flash memory for detailed logging and tuning.
- Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
- Plug’n’Play ExpressLRS: Solder-free locking connector for RP3-H ExpressLRS receivers (sold separately).
- More PWM Pins: Additional pins for expanded control in complex setups.
- CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
- Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
- Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
- USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
- Compact and Lightweight: Ideal for any build.
- RF Rescue: Standard feature for enhanced safety in emergencies.
- Optional Case Color: Grey / Gold / Red / Blue / Purple.
Specification
- Item: Nexus-X Control System
- Firmware: RF 2.2
- MCU: STM32F722RET6
- Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
- Barometer: SPL06-001

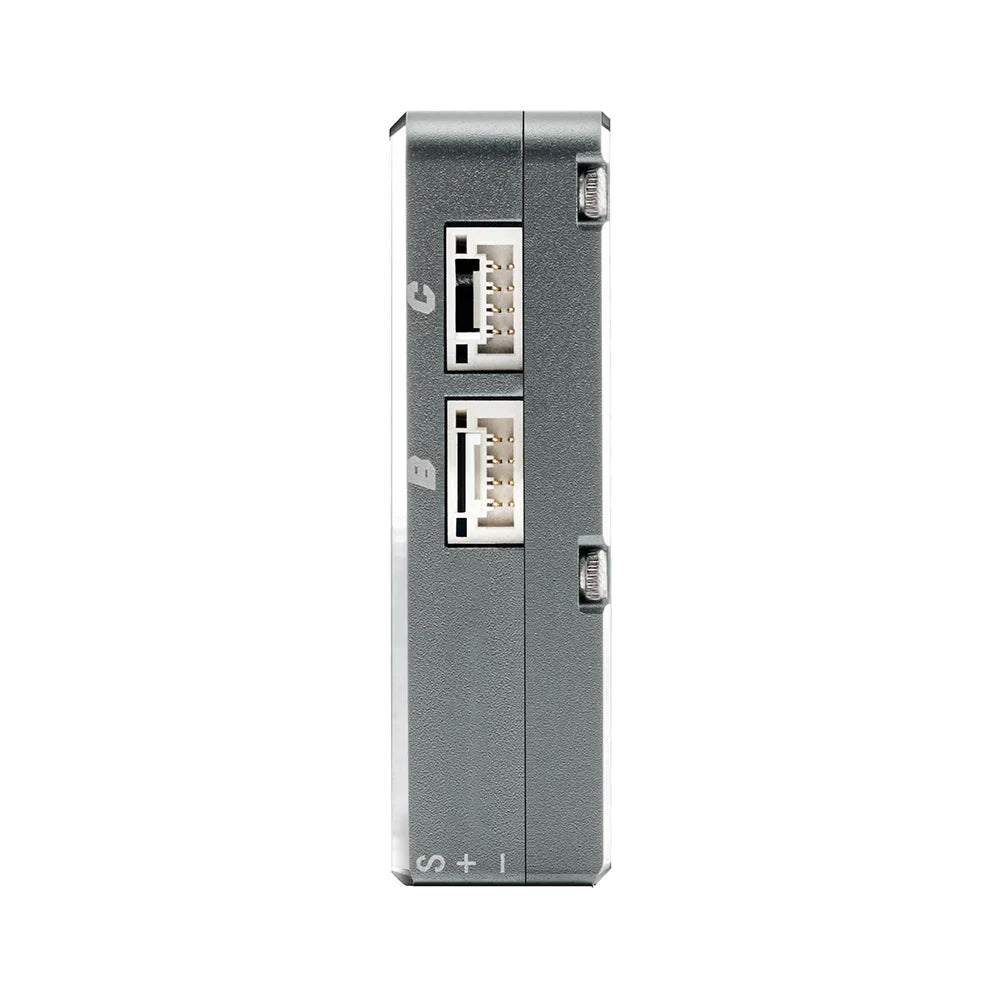

- Uart: 5 - S.BUS[UART1], TELEM[UART2],PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]

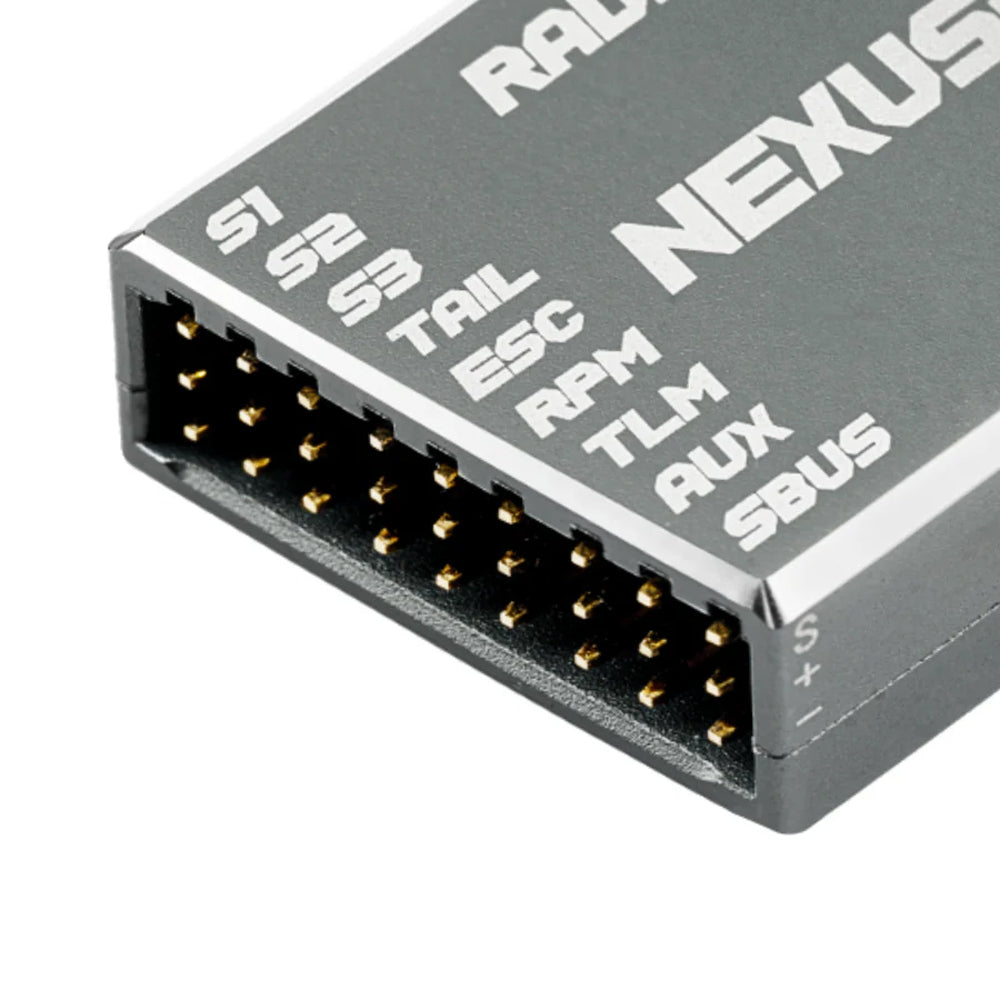

- Servo: S1, S2, S3, TAIL Servos (Up to 12V )
- Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
- AUX: 1

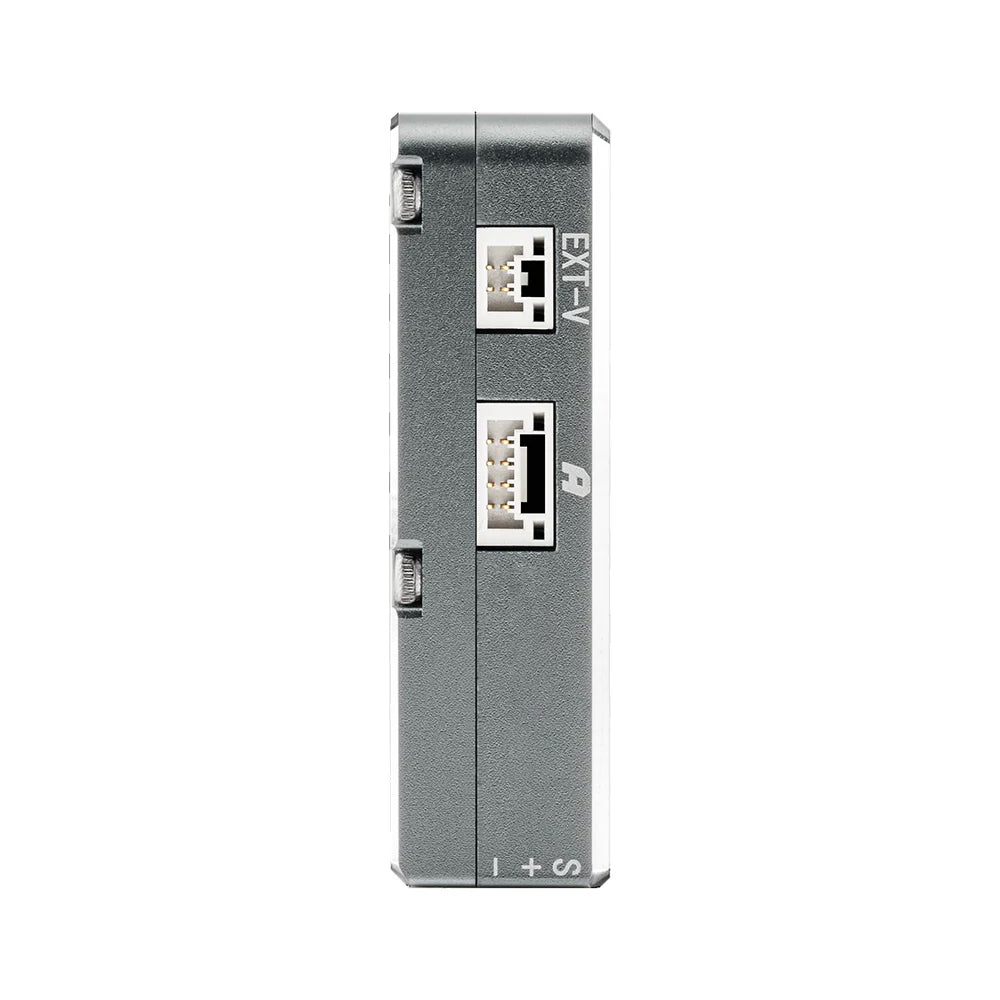

- Ext voltage input (tele): 3.6-70v
- Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
- Voltage Supply(DC): 5 - 16V
- A-B-C Serial Port Power Output: 5V - 1.5A
- Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
- Demensions: 44.70 x 26.50 x 12.30mm
- Weight: 20.6g
Dimensions
Overview
Weight
Related Products
Package Includes
- 1 * NEXUS-X Control System
- 3 * JST-GH 4 Wire pigtail cables
- 1 * JST-GH to Servo Plug (dupont 3 pin connector)
- 1 * Ultra light-weight and flexible USB-C extender
- 1 * Type C extension cable
- 1 * JST-ZH1.5 "DSM" Telemetry cable (Telemetry only does not support DSM Receivers)
- 1 * Voltage telemetry wire
- 3 * 3M double-sided mounting tape
- 2 * Heat shrink tubing
- 1 * Inventory Card
