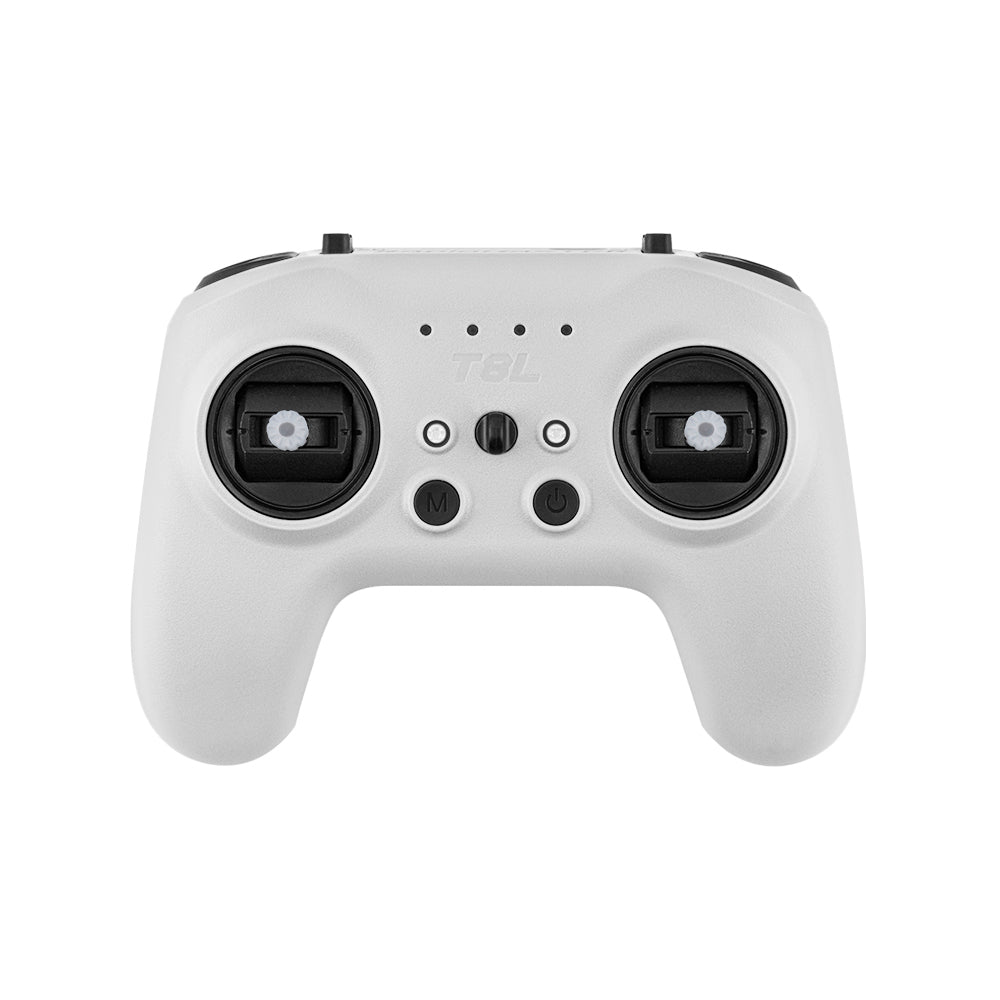

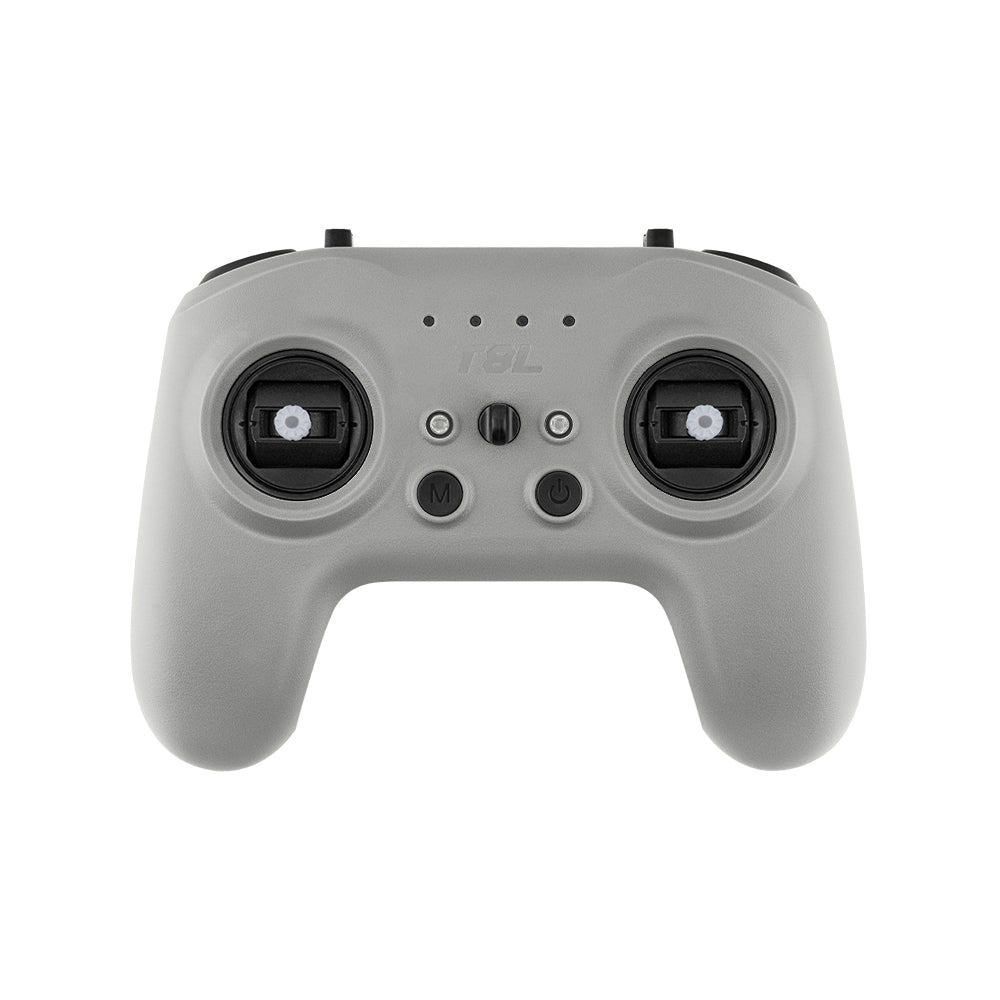

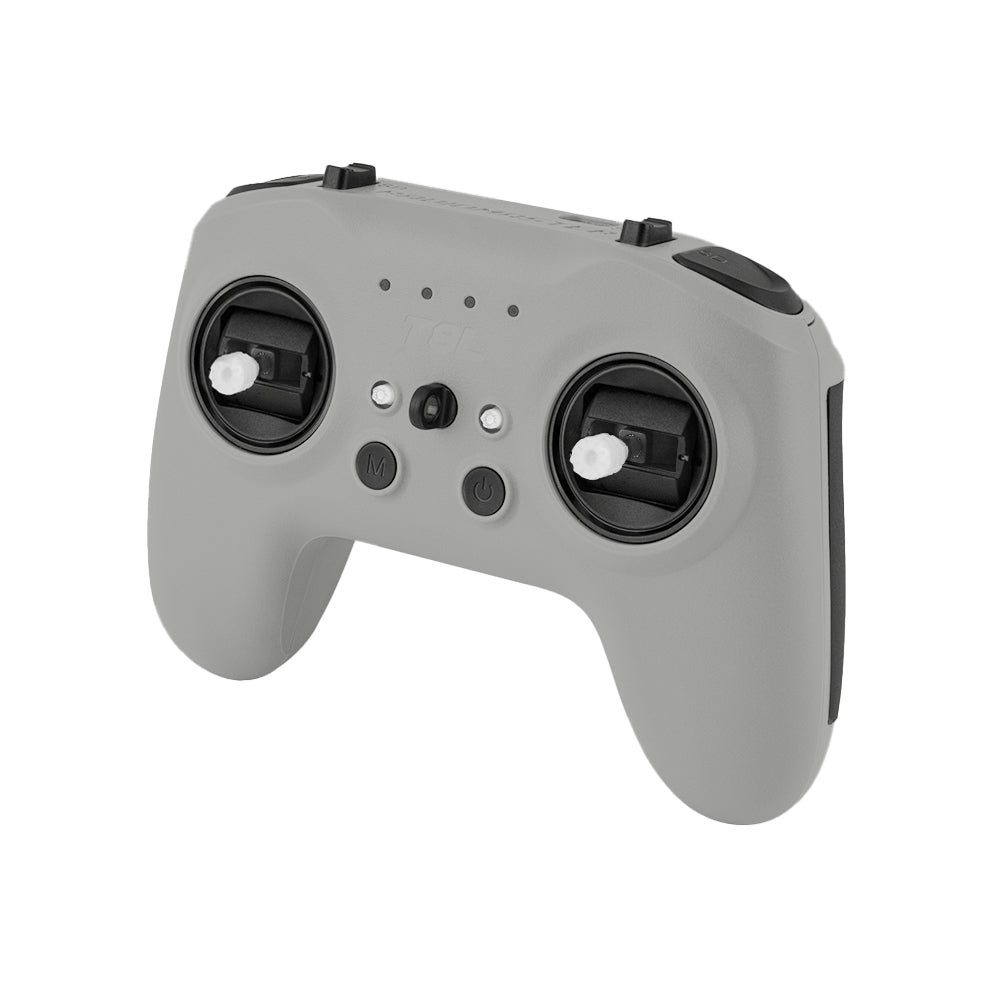

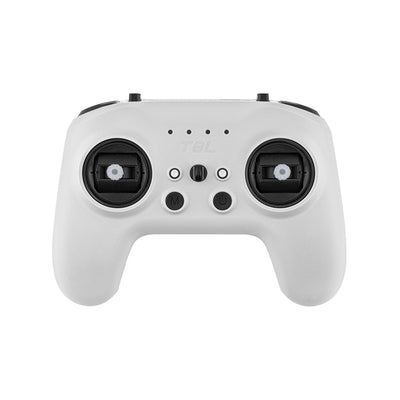

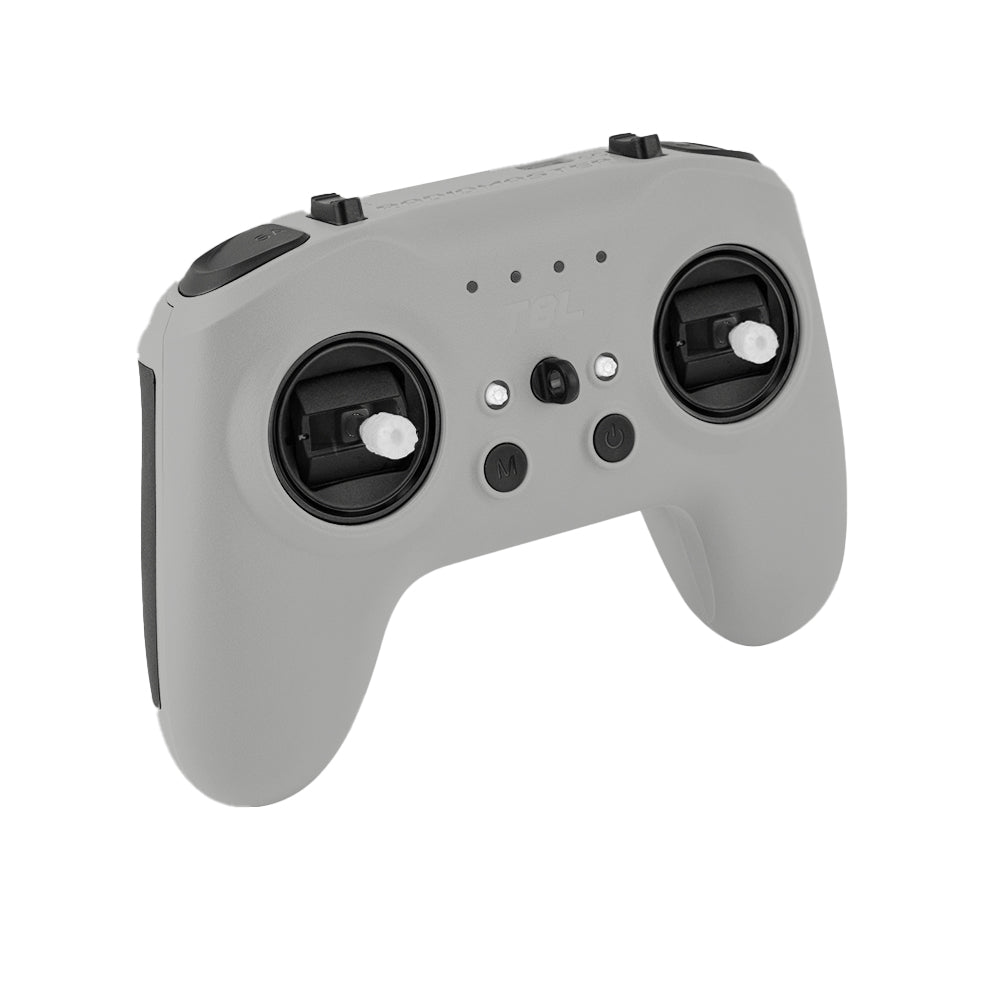

[Pre-order] T8L Radio Controller (M2)
- VAT will be applied to orders shipped to the EU.
- Batteries can't be shipped separately, please purchase batteries with Radio units.
- Customized products require a 40-day lead time and no refunds can be made after the order is placed.
The RadioMaster T8L brings the power of ExpressLRS 2.4GHz into a clean, compact form — and is the first screenless radio controller officially supported by ExpressLRS.
Designed for pilots who value simplicity, portability, and reliability, the T8L delivers responsive control with up to 10 channels via the CRSF protocol. Whether you’re flying a micro multi-copter, fixed-wing aircraft, or just need a dependable backup radio, the T8L provides a smooth, streamlined experience — perfect for indoor or park flying.
With high-precision quad-bearing Hall-effect gimbals, integrated USB-C charging, and simulator compatibility, the T8L is ready to go right out of the box. Setup is quick and easy through a web-based configuration tool that runs directly in Chrome or Edge — no display or external software required.
Please note this is the pre-order, orders start shipping at the end of December.
Launch Video
Features
- Built-in ExpressLRS 2.4GHz module
- Single button press binding to any ExpressLRS receiver

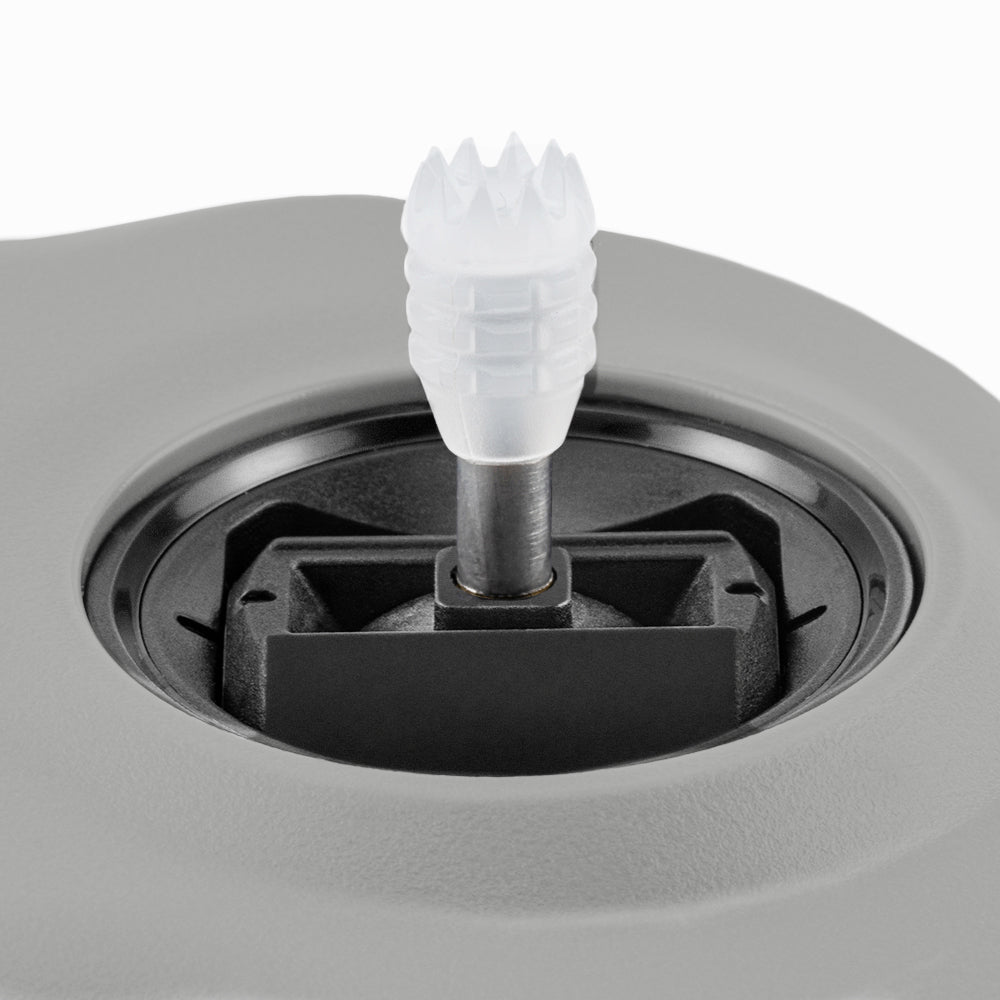

- Quad bearing Hall-effect gimbals for smooth, precise stick control
- 5-way trim buttons with LED and audible feedback

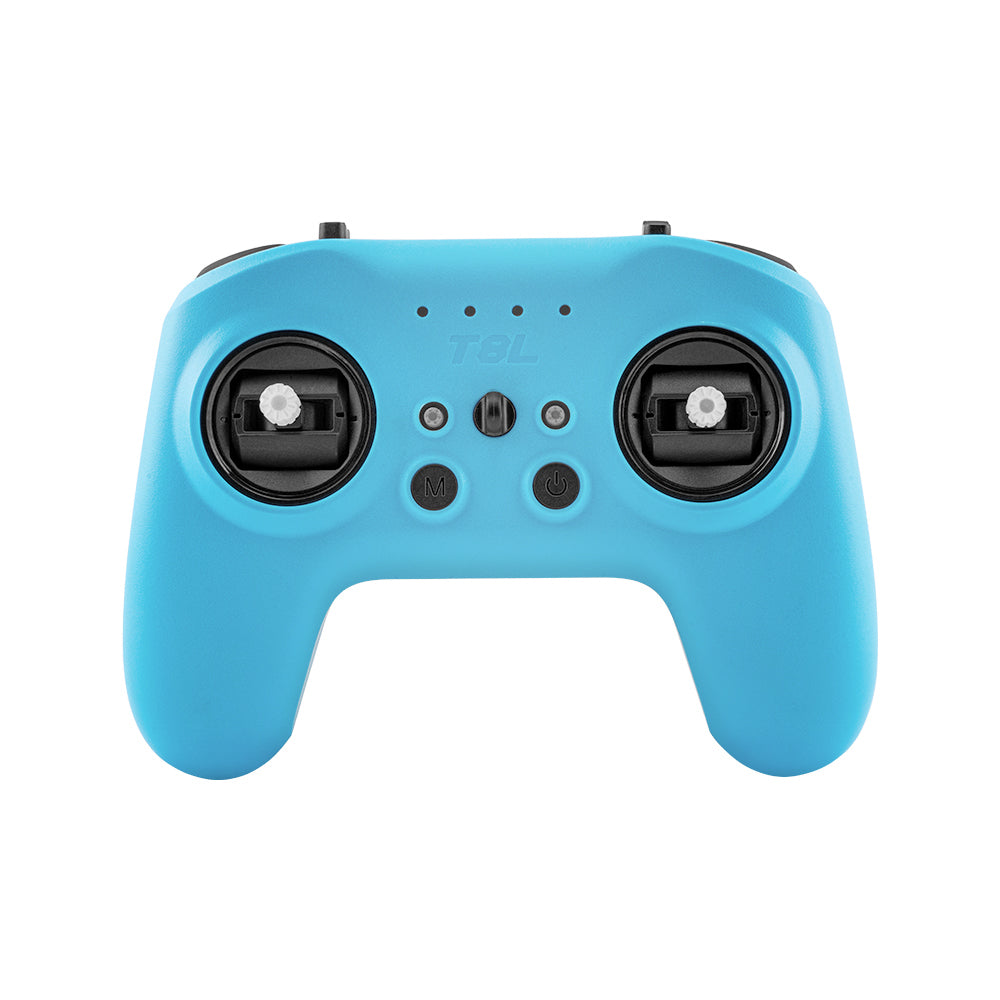

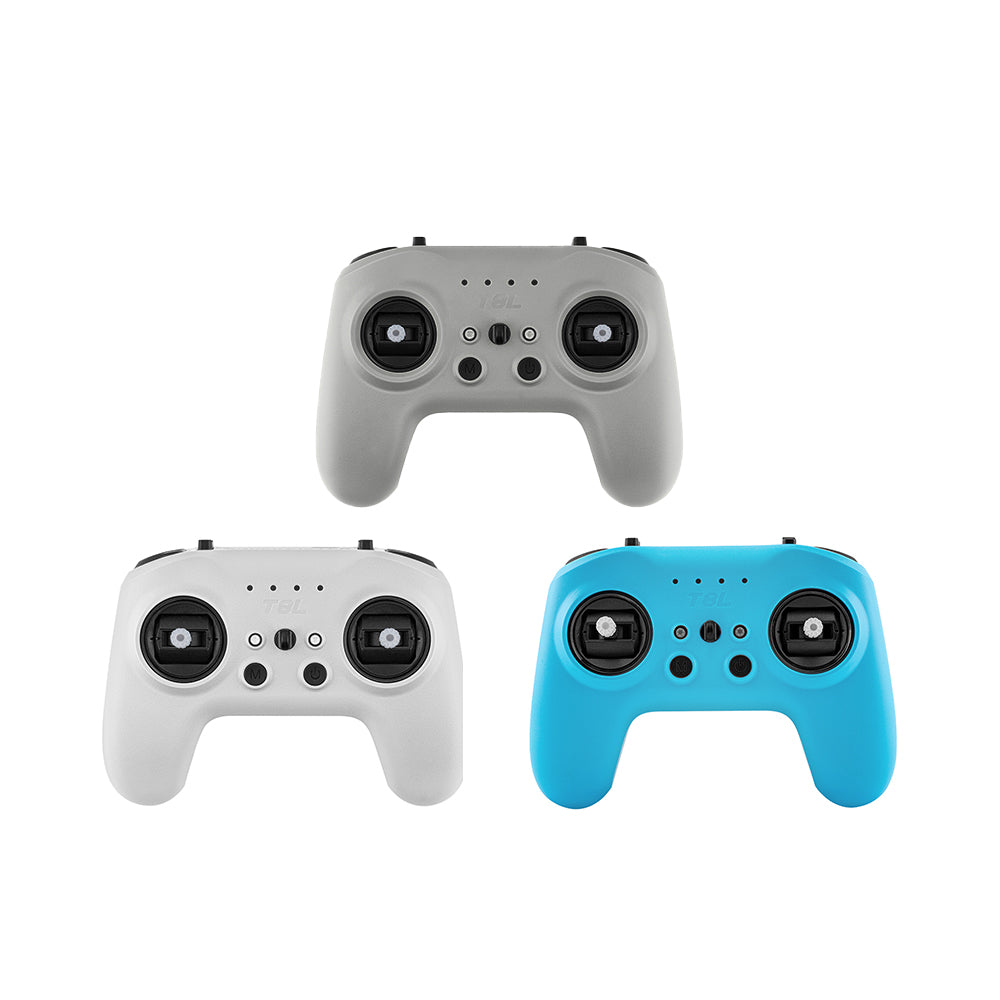

- Available in three colors: Blue, White and Grey

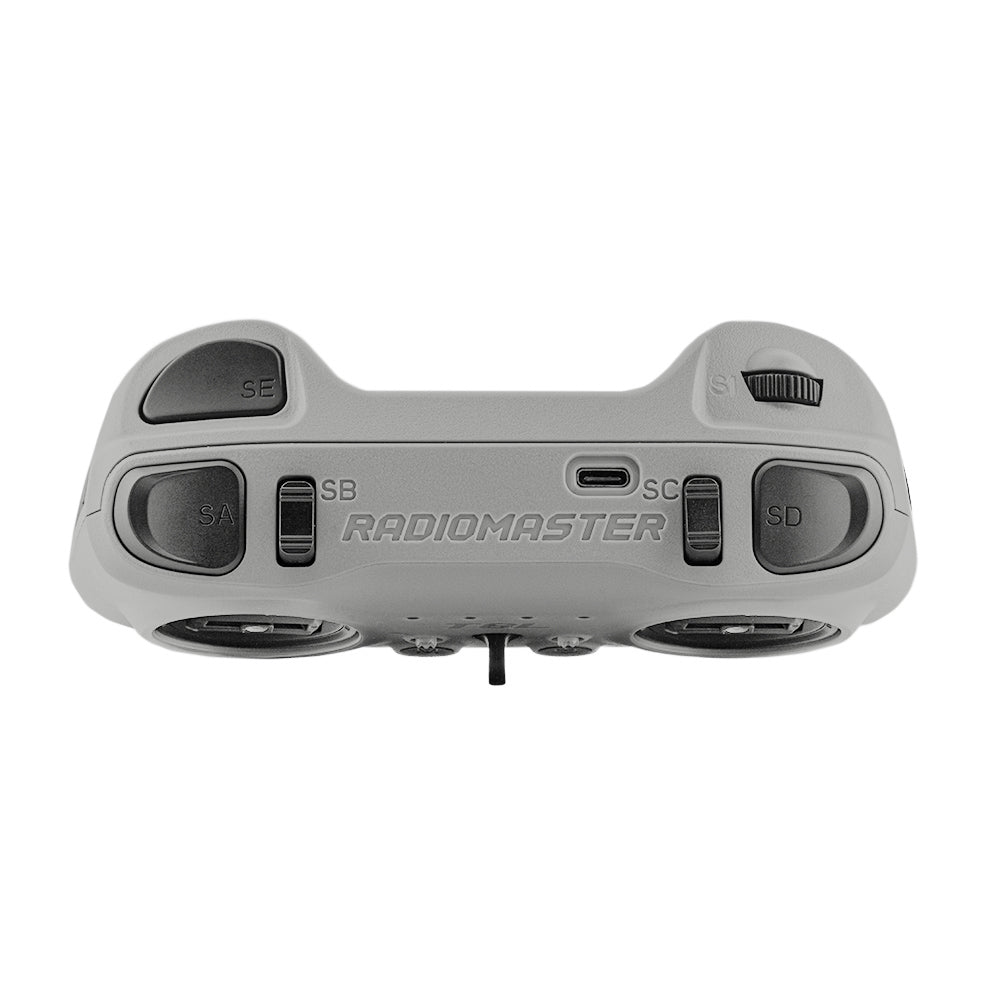

- USB-C port for charging, firmware updates, and simulator use
- Web-UI support (no screen required) for full configuration
- Up to 10 channels supported (receiver-dependent)

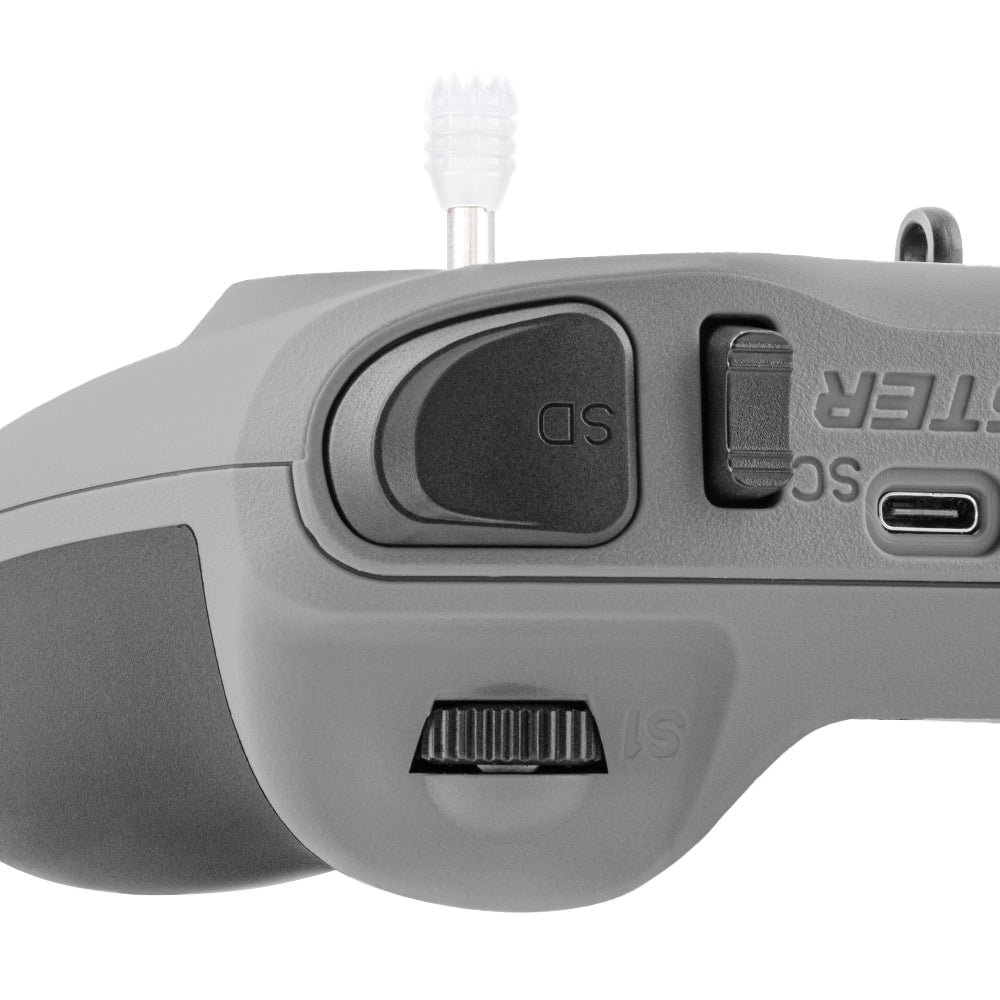

- Rear potentiometer slider for extra input or tuning
- Compact, lightweight design (just 204g) for easy transport
- LED-based interface for system status, battery level, and calibration
- Simulator-compatible—connect via USB and start flying virtually
- Custom button and switch behavior settings via Web UI
Specification
- Item: T8L Radio Controller
- Size: 165*120*70mm
- Weight: 204g
- Frequency: 2.400GHz-2.480GHz
- RF Module: 2.4GHz ExpressLRS(SX1281)
- Transmission power: Adjustable 10dBm(10mW) - Max 20dBm(100mW)
- Battery: 3.7v 18650 x 2 (Not Included)
- Charging: Built-in USB-C charging
- Firmware: T8L (Special T8L Edition, non-configurable)
- Colors: Blue, White, Grey
- Channels: Up to 10 channels (depending on the model/receiver)
- Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals
Smart Web-Based Configuration
The T8L features a powerful HTML-based Web UI that lets you configure every major function directly from your browser. Plug into a PC or Mac via USB-C, open the web tool, and you can:
- Calibrate sticks and trims.
- Adjust the ExpressLRS settings and power output.
- Customize endpoint ranges and reverse directions.
- Remap channels and set operation modes (Mode 1 / Mode 2).
- Customize switch behavior (click, single, double).
- Adjust audio prompts and update firmware.
- Update both the T8L and its built-in ELRS module.
- No apps. Just plug in, connect, and configure.
🔗 Web UI Access: https://radiomaster-rc.github.io/RM-Web-Page/Connection.html
Dimensions
User Manual
Associated Products
Package Includes
- 1 * T8L Radio Controller
- 1 * USB-C Cable
- 4 * Low Tension Gimbal Springs
- 1 * User Manual
