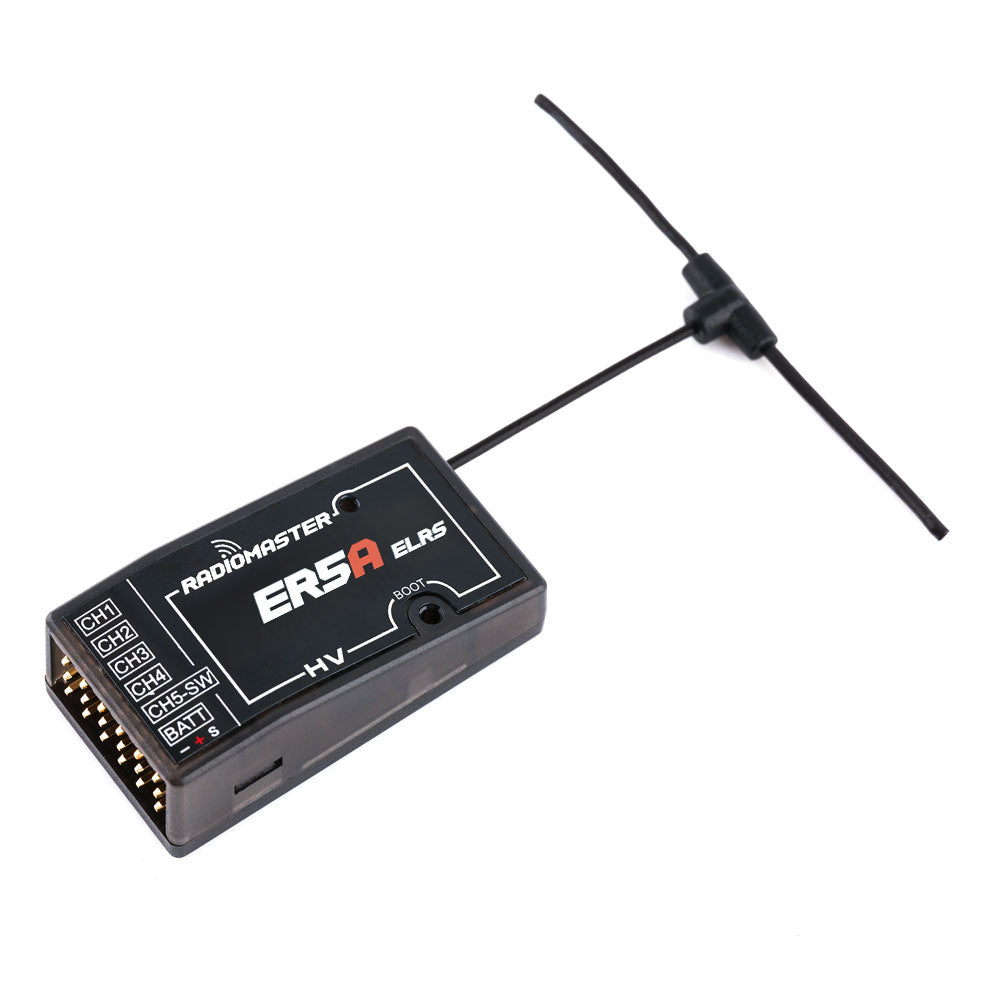

ER5A 2.4GHz 5Ch ELRS PWM Receiver

Name: ER5A 2.4GHz 5Ch ELRS PWM Receiver
Brand: RadioMaster
SKU: HP0157.ER5A
Price: 19.99 USD
Availability: OutOfStock

$19.99

REGION

FCC

LBT

Quantity

[{"id":46464193462503,"title":"FCC","option1":"FCC","option2":null,"option3":null,"sku":"HP0157.ER5A","requires_shipping":true,"taxable":true,"featured_image":{"id":38789740658919,"product_id":8088481431783,"position":1,"created_at":"2022-08-18T14:49:15+08:00","updated_at":"2022-08-18T14:49:17+08:00","alt":null,"width":1000,"height":1000,"src":"\/\/www.radiomasterrc.com\/cdn\/shop\/products\/ER5A-1.jpg?v=1660805357","variant_ids":[46464193462503,46464193495271]},"available":false,"name":"ER5A 2.4GHz 5Ch ELRS PWM Receiver - FCC","public_title":"FCC","options":["FCC"],"price":1999,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":31366222840039,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.radiomasterrc.com\/cdn\/shop\/products\/ER5A-1.jpg?v=1660805357"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46464193495271,"title":"LBT","option1":"LBT","option2":null,"option3":null,"sku":"HP0157.ER5A-LBT","requires_shipping":true,"taxable":true,"featured_image":{"id":38789740658919,"product_id":8088481431783,"position":1,"created_at":"2022-08-18T14:49:15+08:00","updated_at":"2022-08-18T14:49:17+08:00","alt":null,"width":1000,"height":1000,"src":"\/\/www.radiomasterrc.com\/cdn\/shop\/products\/ER5A-1.jpg?v=1660805357","variant_ids":[46464193462503,46464193495271]},"available":false,"name":"ER5A 2.4GHz 5Ch ELRS PWM Receiver - LBT","public_title":"LBT","options":["LBT"],"price":1999,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":31366222840039,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.radiomasterrc.com\/cdn\/shop\/products\/ER5A-1.jpg?v=1660805357"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

VAT fees will be added to orders bound for EU member states.

Batteries can't be shipped separately, please purchase batteries with Radio units.

Customized products require a 40-day lead time and no refunds can be made after the order is placed.

We are now launching ER5 Series ELRS PWM receivers. ER5A ELRS PWM receiver for Aircraft applications, and the ER5C ELRS PWM receiver for surface & marine R/C applications.

ER5 Series Reciver

Features

Supports 8.4V HV servos and accessories
Robust, injection-molded receiver casing
Fast response speeds, incredible range
Supports 4 proportional and 1 switch channel (ExpressLRS 2.x)
Supports 5 proportional channels (ExpressLRS 3.x)
Compact size, easy to install. Perfect for Surface, marine, and air R/C applications
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

Item: ER5A 2.4GHz Receiver
Power supply: DC 4.5-8.4V
Antenna type: high sensitivity T-shape antenna
Wireless Protocol: ELRS 2.0 pre-installed
Output channel: CH1-4 standard PWM; CH5 switch (ON/OFF) PWM
Weight: 6.6 grams
Size: 37*19*13mm

ER5 Series Reciver

Reviewing Video

How to get full range from the 5th channel of ExpressLRS PWM receivers

Package Includes

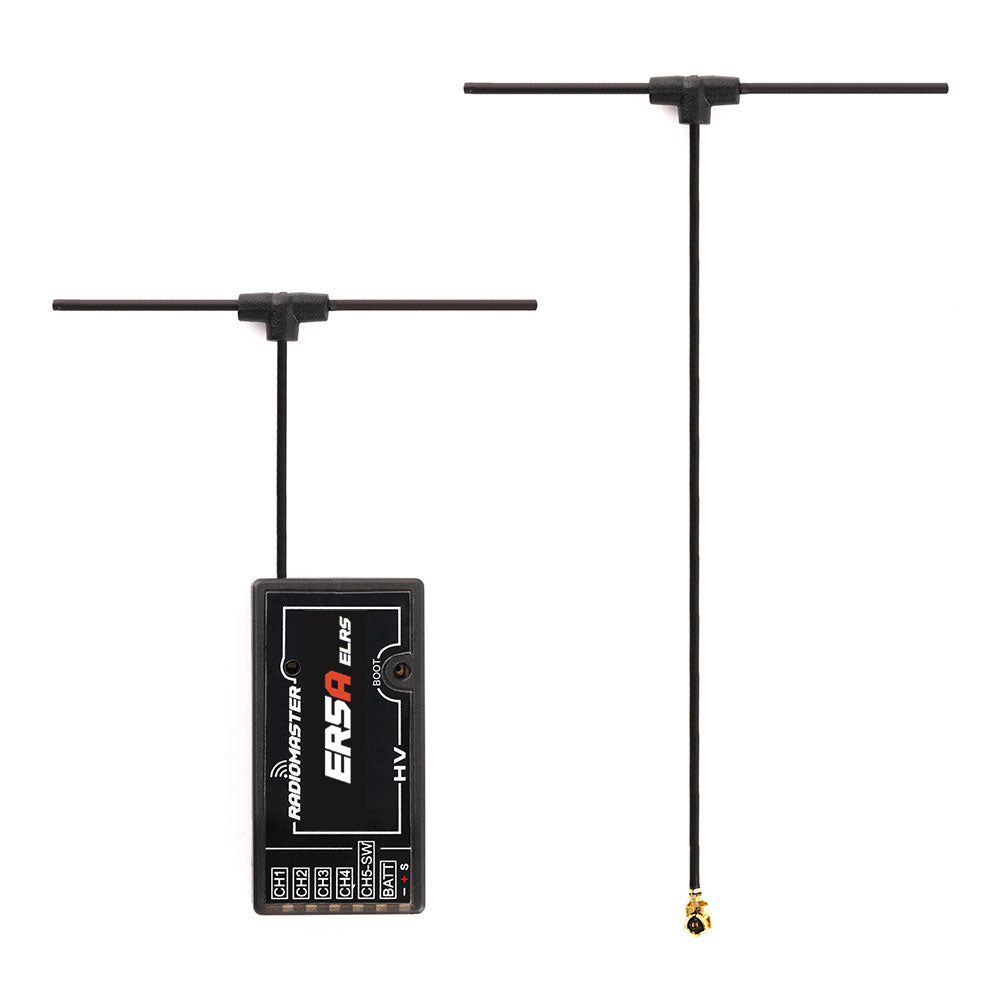

1 * ER5A ELRS PWM Receiver
1 * Spare Long Antenna
