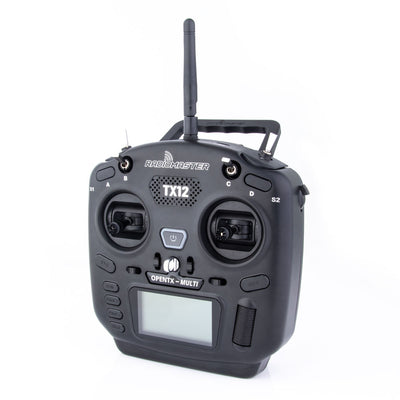

TX12 Radio Controller
- VAT fees will be added to orders bound for EU member states.
- Batteries can't be shipped separately, please purchase batteries with Radio units.
- Customized products require a 40-day lead time and no refunds can be made after the order is placed.
Want a full-featured radio in a comfortably compact form factor? Running open-sourced OpenTX and Multi-Module firmware, the TX12 is continually updatable with new features and functions. Future-proof! How many radios could claim that? A comfortable radio that'll grow as your skills grow, isn't that great?
Click to know more about the TX12 series: RadioMaster TX12 and TX12 Mark II Radio Comparison Chart.
Specification
- Type: TX12 Radio Controller
- Size: 170*159*108mm
- Weight: 363g
- Frequency: 2.400GHZ-2.480GHZ
- RF Chip: Single-chip Multi-protocol（CC2500）
- Supported Protocols: Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT*
- Transmitting Power: 100mW by default
- Antenna Gain: 2db
- Working Current: 160mA@8.4V
- Voltage Range: 6.6-8.4v DC
- Range: > 2km (depending on receiver)
- Radio Firmware: OpenTX（Transmitter）/ Multi-Module（RF module)
- Channels: Up to 16 (depending on receiver)
- Display: 128*64 Monochrome LCD display
- Gimbal: High precision potentiometer gimbals
- External module: JR/FrSKY/Crossfire compatible
- Upgrade Method: USB/SD card & OpenTX Companion PC software
- For the most up to date list on supported protocols please visit https://www.multi-module.org/
- SD Card not included.
Mini Size 170*159*108mm
RadioMaster’s most compact OpenTX compatible radio.
OpenTX Supported
The RadioMasterTX12 is officially supported by OpenTX Firmware and Companion PC software.
CC2500
Built in CC2500RF chip.
Built in Voice Support
Exquisite Details
Folding handle, Saves space and makes transportation convenient.
Removable antenna, Removable antenna design for more DIY options.
Metal roller, Metal roller for more precise action and feel.
Ergonomic design, Comfortable size and ergonomics, suitable for "thumbers" and "pinchers".
Easy navigation, RadioMaster familiar button layout and menu navigation.
Expand Your Options
JR Style external module bay allows for module expansions such as Crossfire.
Built-in Charging
USB Charging and data port charge your battery without removing it.
Program all your model and radio settings from your PC with OpenTX Companion PC software.
Supports Micro SD
Please note SD Card is not included.
Large Battery Compartment
Large battery compartment allows for 2s Lipo batteries or use the included 2 x 18650 Li-ion battery tray (batteries not included)
Radio layout

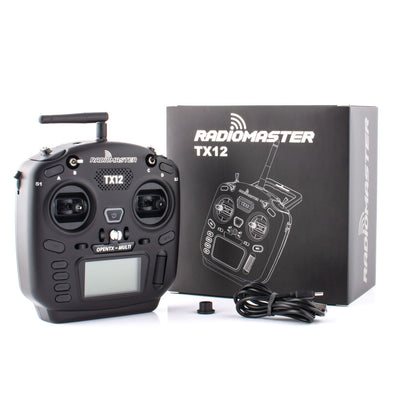

Package Includes
- 1 * TX12 Radio
- 1 * Antenna
- 1 * 18650 tray
- 1 * USB-C cable
